Thông số kỹ thuật

Mixing capability	On-board processors	SPX algorithm: 24 programs
I/O	Phantom power	+48 V
I/O	Digital I/O	USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels	Mono[MIC/LINE]	4
Input Channels	Stereo[LINE]	3
Output Channels	STEREO OUT	2
	MONITOR OUT	1
	PHONES	1
	AUX SEND	1
Bus		Stereo: 1, AUX[FX]: 1
Input Channel Function	PAD	26 dB (Mono)
	HPF	80 Hz, 12 dB/oct (Mono)
	COMP	1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
	EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
	EQ MID	Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
	EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
	PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
	Level Meter	2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

Total harmonic distortion		0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response		+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Hum & noise level	Residual output noise	-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk		-83 dB
Power requirements		PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption		22.9 W
Dimensions	W	244 mm (9.6")
	H	71 mm (2.8")
	D	294 mm (11.6")
Net weight		2.1 kg (4.63 lbs.)
Accessories		Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others		Operating Temperature: 0 to +40˚C

Xem đầy đủ thông số kỹ thuật

Tin Tức Tư Vấn

Xem thêm thông tin về bộ mixer analog Yamaha 16 line cùng dòng MGP series, các đặc điểm chsinh của dòng sản phẩm series analog MGP series, hướng dẫn cách đấu nối và ứng dụng của mixer Digital Yamaha thế hệ mới và các cách để phân biệt thật giả phân biệt chức năng kỹ thuật số và thuần analog :

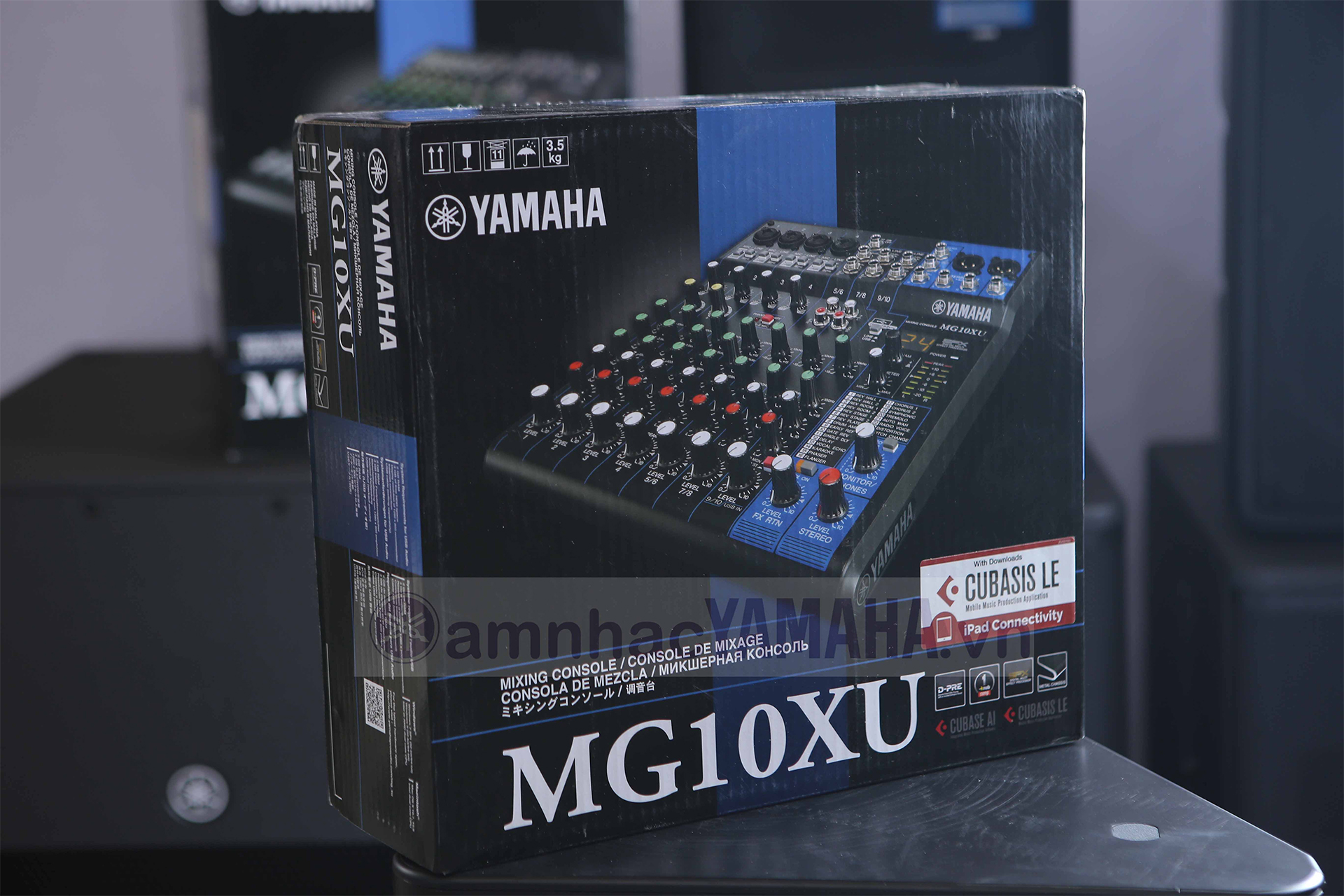

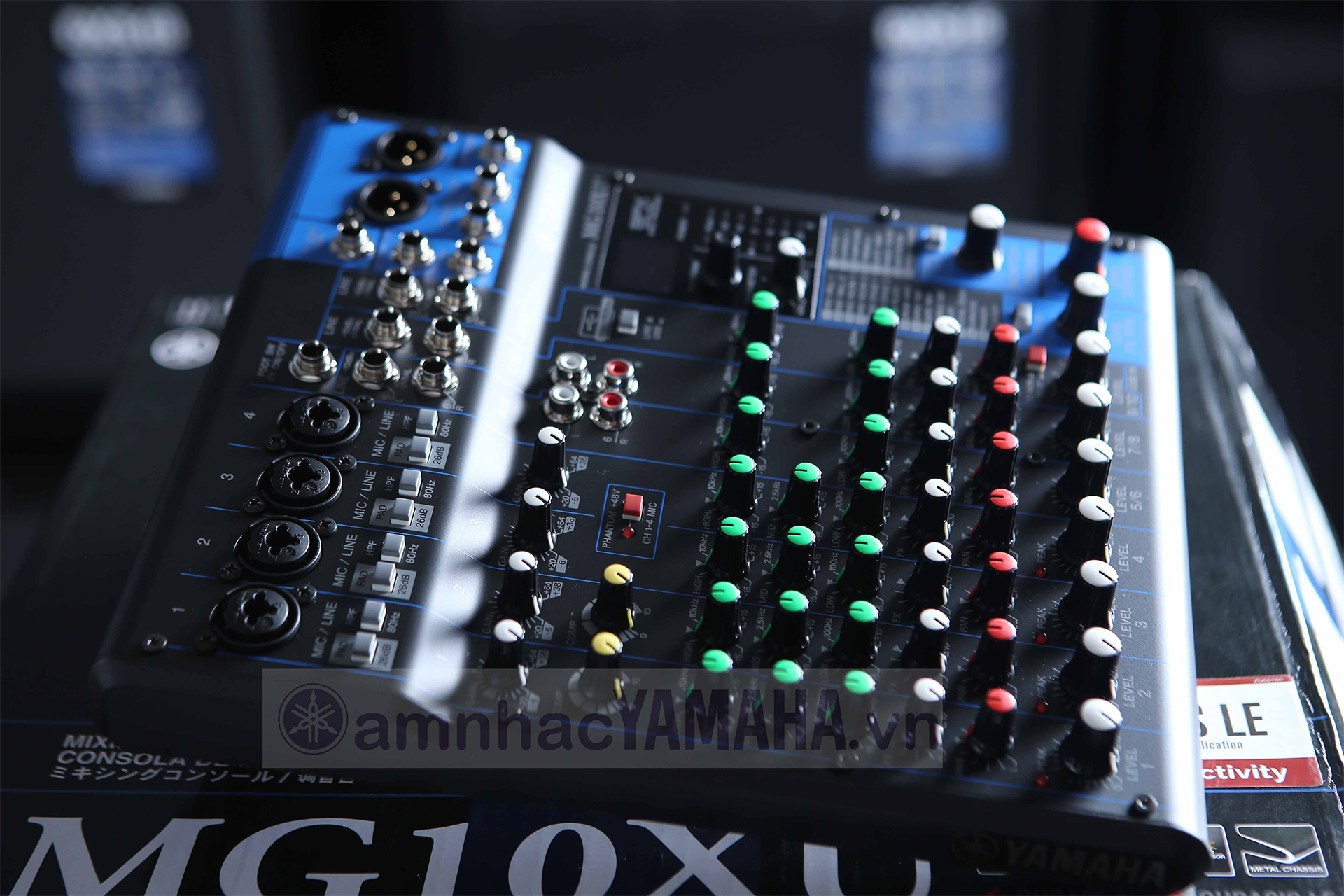

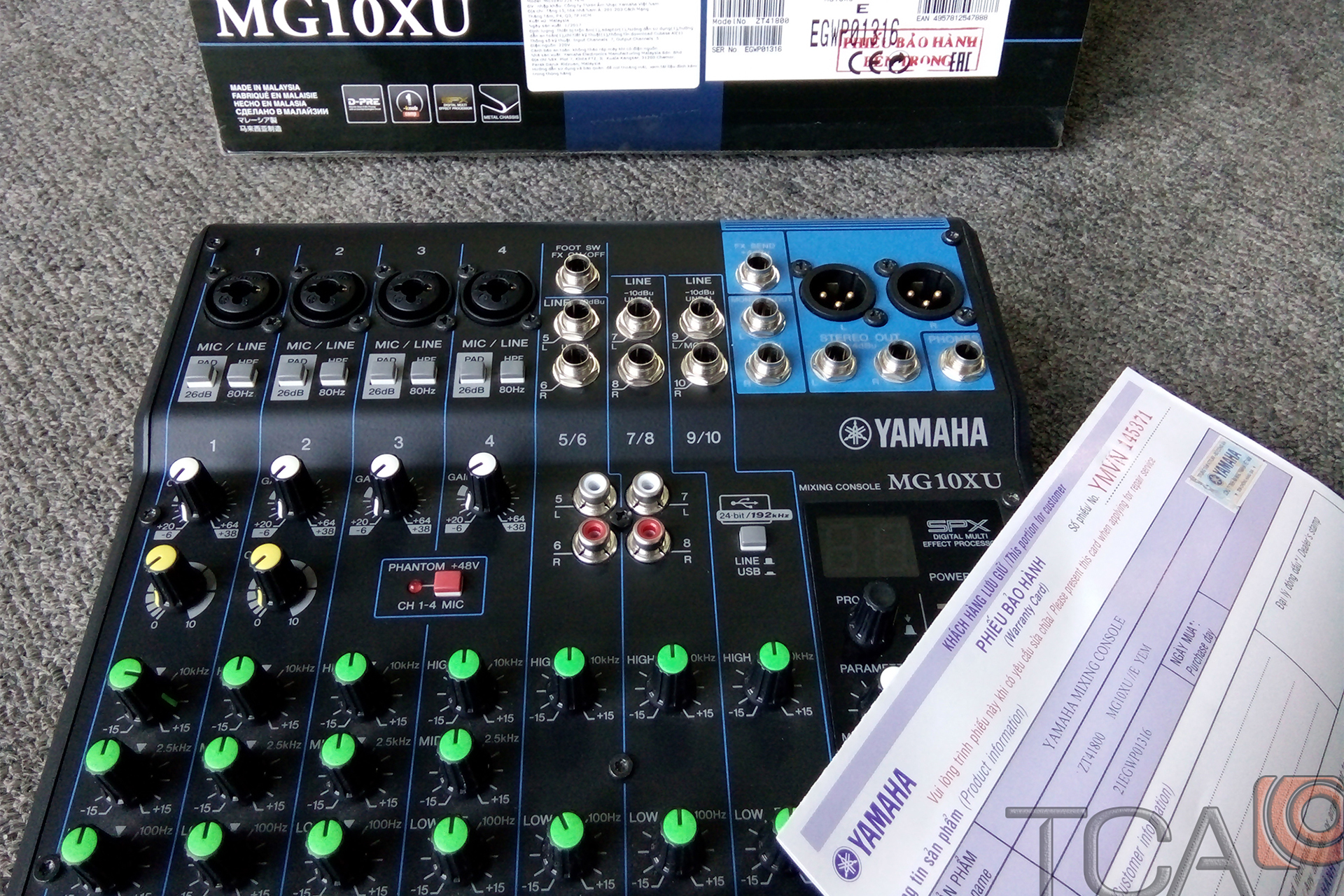

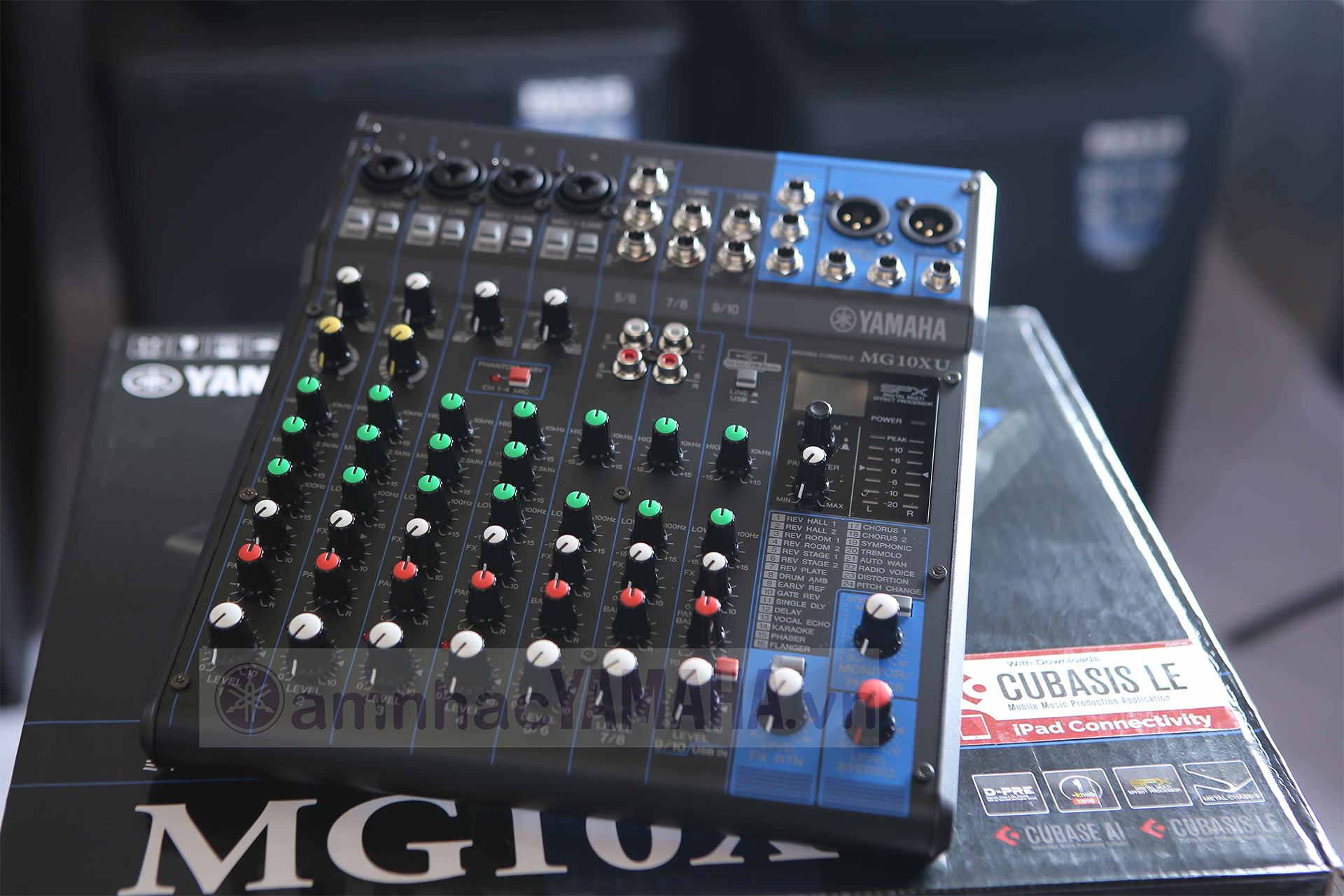

Mixer Yamaha MG10XU

10-Channel Mixing Console: tối đa 4 Mic / 10 Line Input (4 mono + 3 stereo) / 1 Stereo Bus / 1 AUX (bao gồm FX)

10-Channel Mixing Console
Tối đa 4 Mic / 10 Line Input (4 mono + 3 stereo)
1 Stereo Bus
1 AUX (bao gồm FX)
“D-PRE” mic preamps với mạch inverted Darlington.
1-Knob compressors
Những hiệu ứng cao cấp: SPX với 24 chương trình

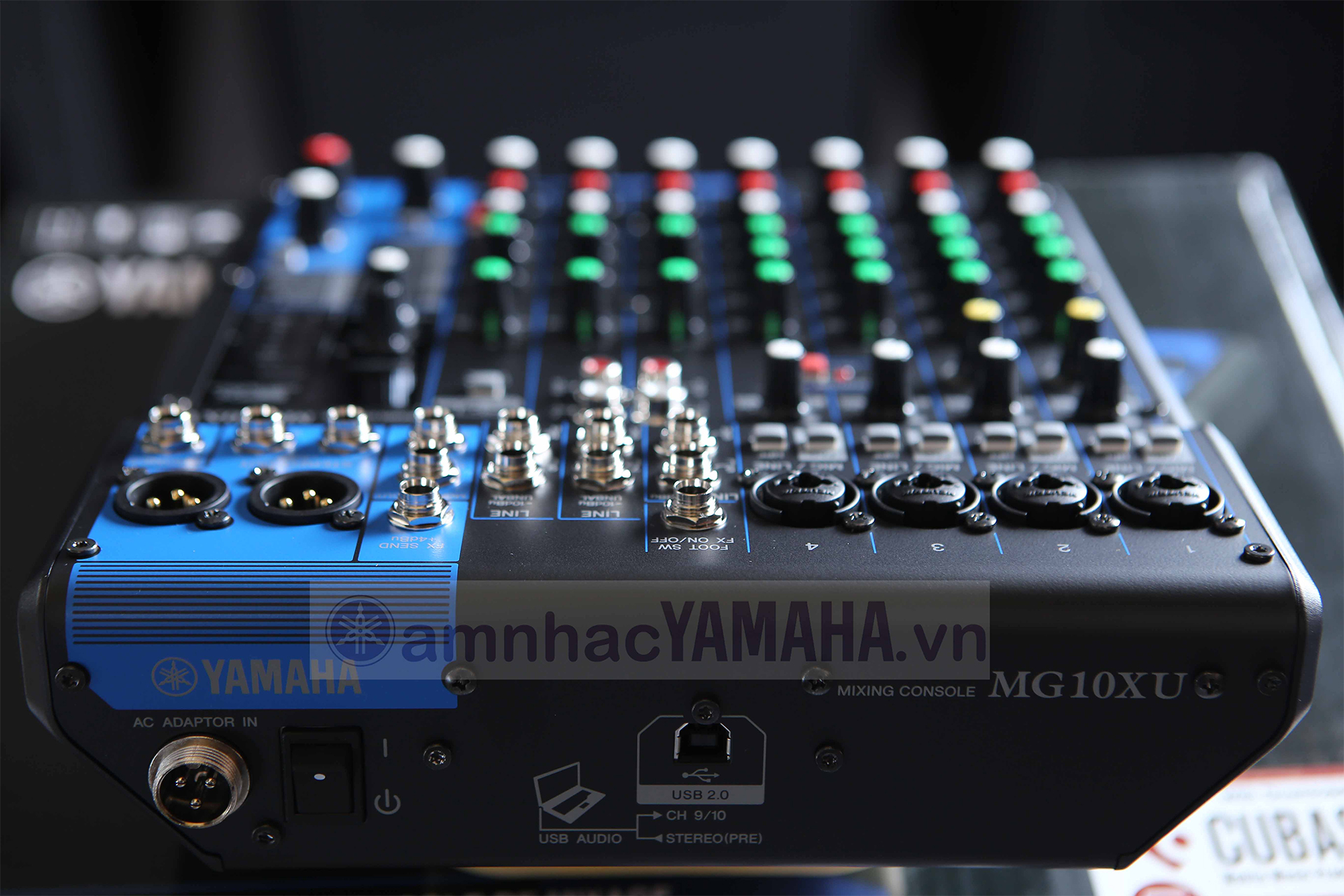

24-bit/192kHz 2in/2out USB audio
Kết nối với iPad (version 2 trở đi) thông qua the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Bao gồm Cubase AI DAW software phiên bản download

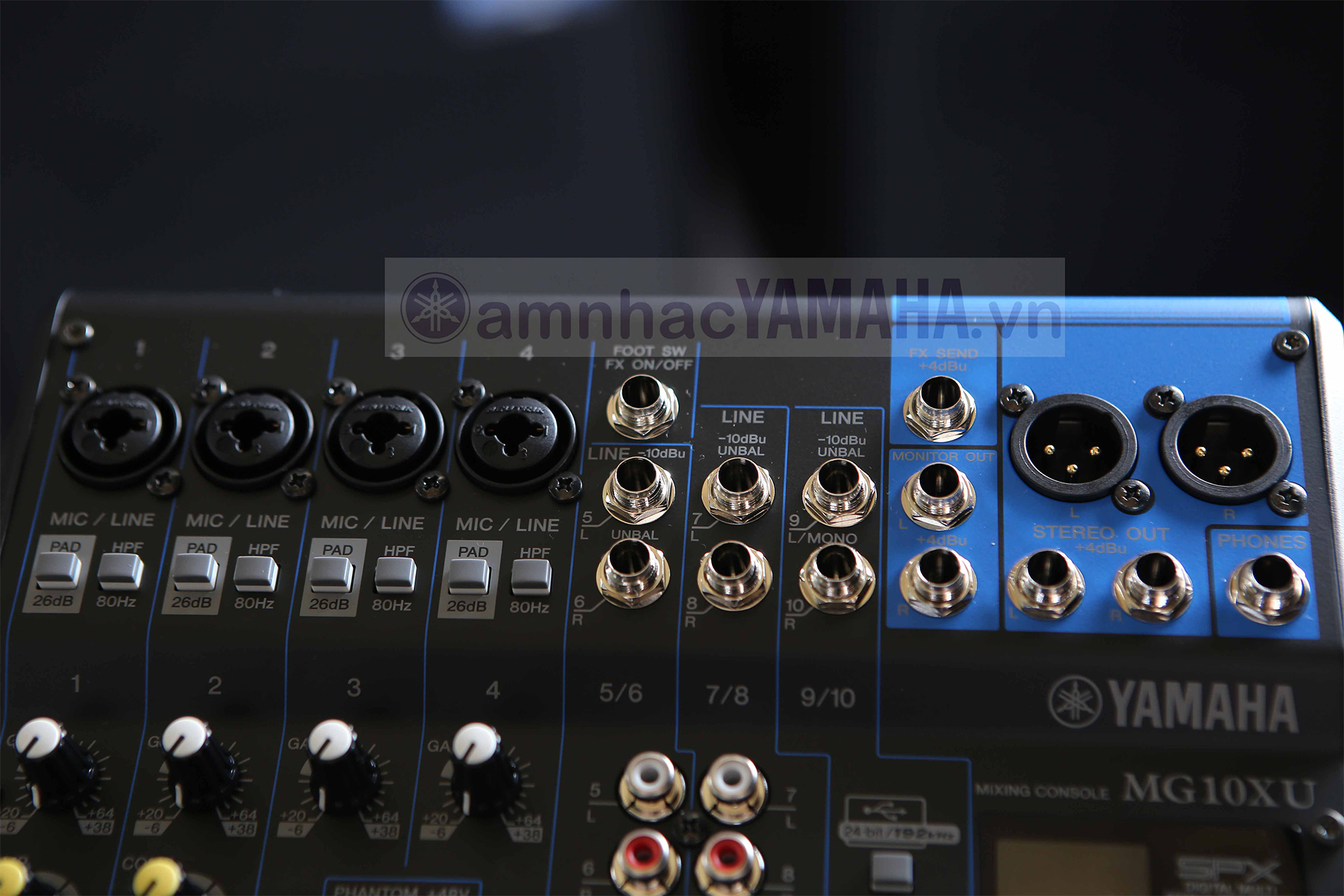

PAD switch trên mỗi mono input
Cấp nguồn phantom +48V
XLR balanced output
Khung kim loại
Kích thước(W×H×D): 244 mm x 71 mm x 294 mm (9.6" x 2.8" x 11.6")
Trọng lượng: 2.1 kg (4.63 lbs.)

Xem thêm: Mixer kỹ thuật số 10 line Yamaha DM1000VCM

Thông số kĩ thuật Mixer Yamaha MG10XU

Mixing capability	On-board processors	SPX algorithm: 24 programs
I/O	Phantom power	+48 V
I/O	Digital I/O	USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels	Mono[MIC/LINE]	4
Input Channels	Stereo[LINE]	3
Output Channels	STEREO OUT	2
	MONITOR OUT	1
	PHONES	1
	AUX SEND	1
Bus		Stereo: 1, AUX[FX]: 1
Input Channel Function	PAD	26 dB (Mono)
	HPF	80 Hz, 12 dB/oct (Mono)
	COMP	1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
	EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
	EQ MID	Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
	EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
	PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
	Level Meter	2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

Total harmonic distortion		0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response		+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Hum & noise level	Residual output noise	-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk		-83 dB
Power requirements		PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption		22.9 W
Dimensions	W	244 mm (9.6")
	H	71 mm (2.8")
	D	294 mm (11.6")
Net weight		2.1 kg (4.63 lbs.)
Accessories		Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others		Operating Temperature: 0 to +40˚C

Thông số kỹ thuật

Mixing capability	On-board processors	SPX algorithm: 24 programs
I/O	Phantom power	+48 V
I/O	Digital I/O	USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels	Mono[MIC/LINE]	4
Input Channels	Stereo[LINE]	3
Output Channels	STEREO OUT	2
	MONITOR OUT	1
	PHONES	1
	AUX SEND	1
Bus		Stereo: 1, AUX[FX]: 1
Input Channel Function	PAD	26 dB (Mono)
	HPF	80 Hz, 12 dB/oct (Mono)
	COMP	1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
	EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
	EQ MID	Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
	EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
	PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
	Level Meter	2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

Total harmonic distortion		0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response		+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Hum & noise level	Residual output noise	-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk		-83 dB
Power requirements		PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption		22.9 W
Dimensions	W	244 mm (9.6")
	H	71 mm (2.8")
	D	294 mm (11.6")
Net weight		2.1 kg (4.63 lbs.)
Accessories		Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others		Operating Temperature: 0 to +40˚C

Xem đầy đủ thông số kỹ thuật

Thông số kỹ thuật chi tiết Mixer Yamaha MG10XU

Mixing capability	On-board processors	SPX algorithm: 24 programs
I/O	Phantom power	+48 V
I/O	Digital I/O	USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels	Mono[MIC/LINE]	4
Input Channels	Stereo[LINE]	3
Output Channels	STEREO OUT	2
	MONITOR OUT	1
	PHONES	1
	AUX SEND	1
Bus		Stereo: 1, AUX[FX]: 1
Input Channel Function	PAD	26 dB (Mono)
	HPF	80 Hz, 12 dB/oct (Mono)
	COMP	1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
	EQ HIGH	Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
	EQ MID	Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
	EQ LOW	Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
	PEAK LED	LED turns on when post EQ signal reaches 3 dB below clipping
	Level Meter	2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]

Total harmonic distortion		0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response		+0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise level	Equivalent input noise	-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Hum & noise level	Residual output noise	-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk		-83 dB
Power requirements		PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption		22.9 W
Dimensions	W	244 mm (9.6")
	H	71 mm (2.8")
	D	294 mm (11.6")
Net weight		2.1 kg (4.63 lbs.)
Accessories		Included Accessory: AC Adaptor, Owner’s Manual, Cubase AI Download Information, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5
Others		Operating Temperature: 0 to +40˚C
