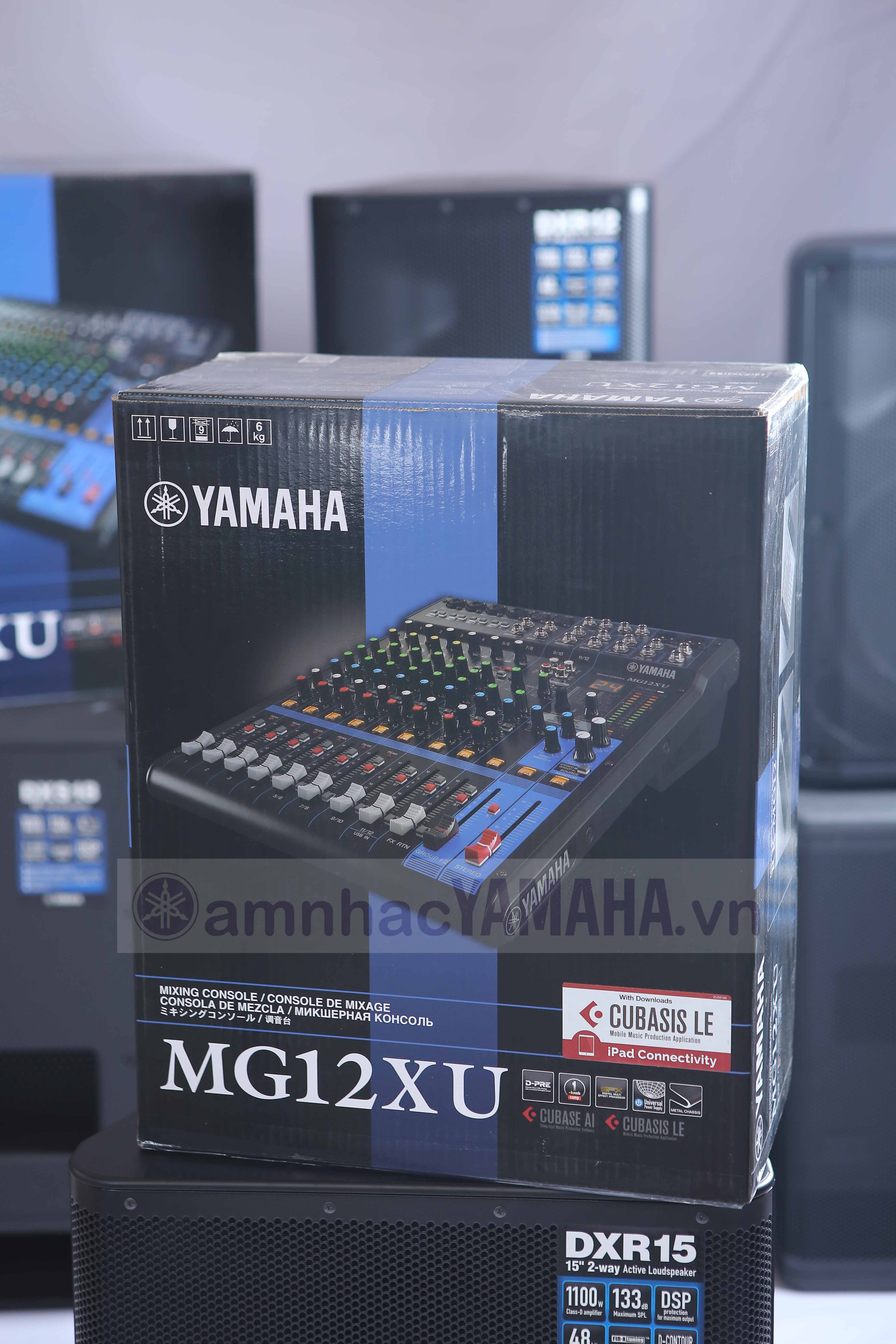

Mixer Yamaha MG12XU
12-Channel Mixing Console: tối đa 6 Mic / 12 Line Input (4 mono + 4 stereo) / 2 GROUP Bus + 1 Stereo Bus / 2 AUX (bao gồm FX)
- 12-Channel Mixing Console
- Tối đa 6 Mic / 12 Line Input (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX (bao gồm FX)
- “D-PRE” mic preamps với mạch inverted Darlington.
- 1-Knob compressors
- Những hiệu ứng cao cấp: SPX với 24 chương trình
- 24-bit/192kHz 2in/2out USB audio
- Kết nối với iPad (version 2 trở đi) thông qua the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Bao gồm Cubase AI DAW software phiên bản download
- PAD switch trên mỗi mono input
- cấp nguồn phantom +48V
- XLR balanced output
- Sử dụng được với nhiều nguồn điện
- Bộ rack mount RK-MG12 optional
- Khung kim loại
- Kích thước(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x 4.6" x 16.6")
- Trọng lượng: 4.2kg (9.3 lbs.)
Thông số kĩ thuật Mixer Yamaha MG12XU
| Mixing capability | On-board processors |
SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
|---|
| I/O | Phantom power |
+48 V |
|---|
| Digital I/O |
USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit |
|---|
| Input Channels | Mono[MIC/LINE] |
4 |
|---|
| Mono/Stereo[MIC/LINE] |
2 |
|---|
| Stereo[LINE] |
2 |
|---|
| Output Channels | STEREO OUT |
2 |
|---|
| MONITOR OUT |
1 |
|---|
| PHONES |
1 |
|---|
| AUX SEND |
2 |
|---|
| GROUP OUT |
2 |
|---|
| Bus |
Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) |
|---|
| Input Channel Function | PAD |
26 dB (Mono) |
|---|
| HPF |
80 Hz, 12 dB/oct (Mono/Stereo: MIC only) |
|---|
| COMP |
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec |
|---|
| EQ HIGH |
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
|---|
| EQ MID |
Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking |
|---|
| EQ LOW |
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
|---|
| PEAK LED |
LED turns on when post EQ signal reaches 3 dB below clipping |
|---|
| Level Meter |
2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
|
|---|
| Total harmonic distortion |
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min |
|---|
| Frequency response |
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
|---|
| Hum & noise level | Equivalent input noise |
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
|---|
| Residual output noise |
-102 dBu (STEREO OUT, STEREO master fader: Min) |
|---|
| Crosstalk |
-78 dB |
|---|
| Power requirements |
AC 100 – 240 V, 50 / 60 Hz |
|---|
| Power consumption |
22 W |
|---|
| Dimensions | W |
308 mm (12.1") |
|---|
| H |
118 mm (4.6") |
|---|
| D |
422 mm (16.6") |
|---|
| Net weight |
4.2 kg (9.3 lbs.) |
|---|
| Accessories |
Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information,Optional Accessory:
Rack-mount kit RK-MG12, Foot Switch FC5
|
|---|
| Others |
Operating Temperature: 0 to +40˚C
|
|---|
